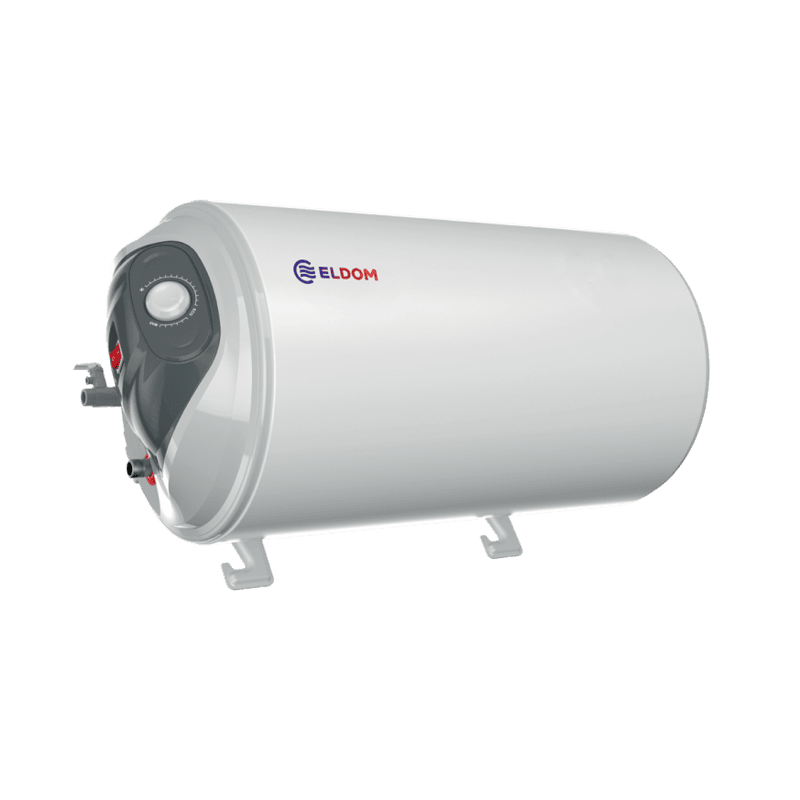

ELDOM Favourite 50 Litre Horizontal Electric Hot Water Cylinder
The ELDOM WH05039L Electric Water Heater (Horizontal Installation) is a compact, energy-efficient solution designed for modern households. Combining a generous 45-litre capacity with a slim 410 mm diameter, this unit maximises space efficiency while delivering reliable hot water. Engineered for horizontal mounting, it is ideal for low-ceilinged or confined spaces, ensuring seamless integration into any home.
Key Features:
Horizontal Design: Specifically engineered for horizontal installation, optimising use in areas with restricted vertical space.
Space-Saving Build: Compact 410 mm diameter profile despite its 45-litre capacity.
Energy Efficiency: Rated Energy Efficiency Class C for reduced power consumption and lower utility costs.
Robust Construction: Heavy-duty insulation minimises heat loss, enhancing durability and performance.
Advanced Safety: CE-certified with a 3-in-1 metal safety valve (pressure relief, check valve, and drain function).
User-Friendly Controls: External mechanical thermostat, illuminated waterproof power switch, and temperature indicator for straightforward operation.
Corrosion Protection: Dual magnesium anode system prolongs lifespan by shielding against rust.
Frost Protection: Automatically prevents freezing damage in cold environments.
Product Details
Brand: ELDOM
Model: WH05039L (Horizontal Installation)
Net Capacity: 45 litres
Power Rating: 2 kW / 230 V / 10 A (includes pre-fitted cable with plug)
Water Connection: ½-inch thread
Mix Output at 40°C: 70 litres
Dimensions (Diameter x Length): 410 x 800 mm
Weight: 19 kg
Energy Efficiency Rating: C
Included:
Boiler unit
User manual
Heavy-duty wall anchors
3-in-1 safety valve
